HU Xiao; TIAN Jing; TIAN Jiajun; CHEN Fucheng; CHEN Xiaojie; YANG Shiyu; JIANG Yang

doi:10.7498/aps.74.20241758

Abstract

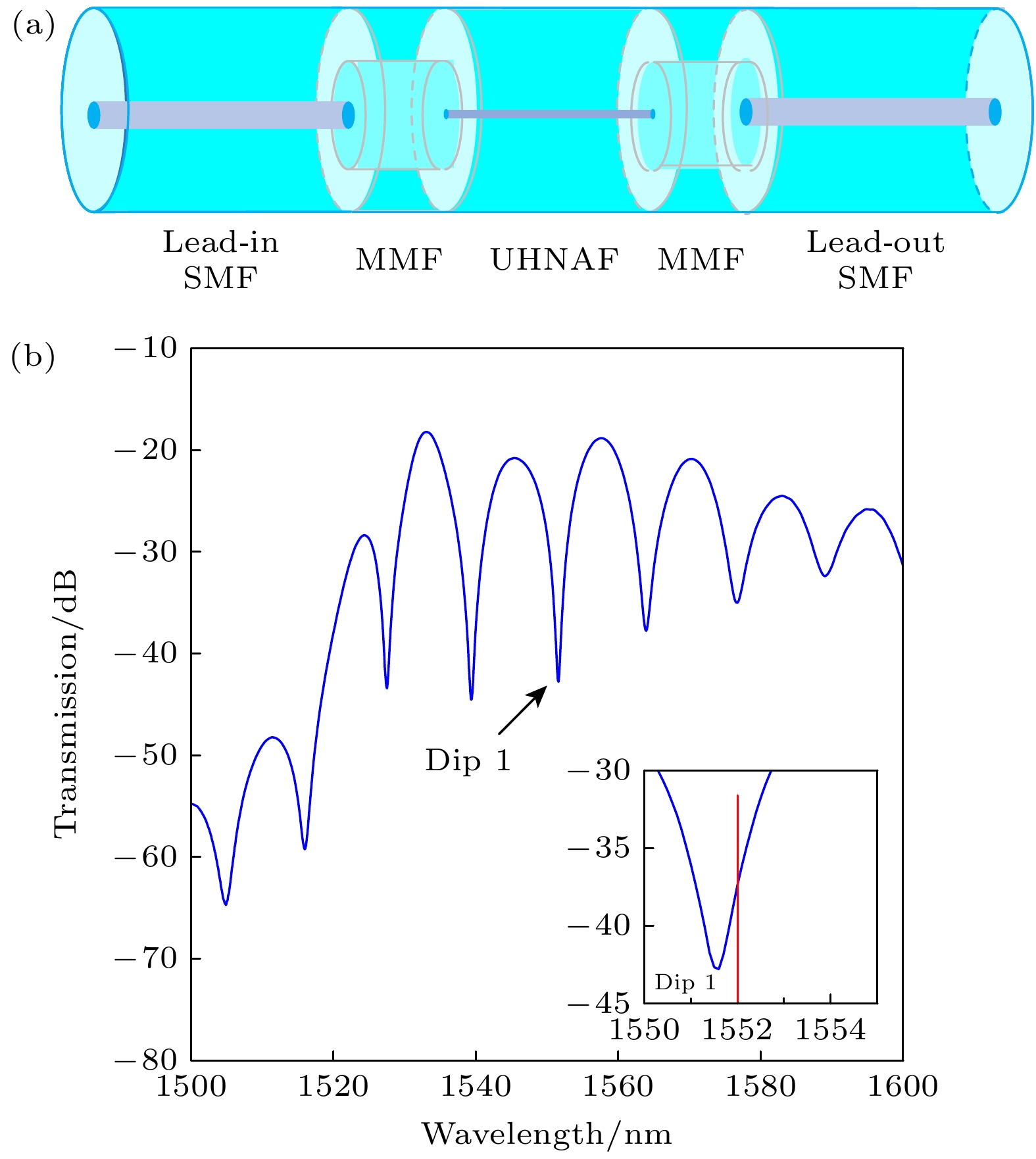

In this work, a low-frequency acoustic sensing scheme is proposed based on the structure of in-fiber Mach-Zehnder interferometer , in which the refractive index difference between fiber core and cladding is used to form a miniature Mach-Zehnder interferometer through fusion splicing of specialty optical fibers in a multi-mode-ultra-high numerical aperture-multi-mode configuration. This design achieves modal recombination between cladding and core modes, thereby effectively enhancing fiber bending sensitivity. The interferometer structure is then combined with a polyethylene terephthalate (PET) transducer diaphragm, enabling the sensing fiber to undergo curvature changes synchronously with the diaphragm under sound pressure, thereby indirectly increasing the area over which the fiber receives the acoustic field. When external acoustic pressure induces bending modulation on both the sensing fiber and transducer diaphragm, the differential strain distribution between the fiber cladding and core generates an optical path difference. This manifests itself in interference spectrum shifts, enabling the effective detection of low-frequency acoustic signals through demodulating the spectrum variations. In the paper, the theoretical framework for the acoustic sensing system is derived and validated experimentally. The results show that at 65 Hz, the system achieves a signal-to-noise ratio (SNR) of approximately 57 dB and a minimum detectable sound pressure of $267.9{\text{ μPa/H}}{{\text{z}}^{{{1/2}}}}$at 65 Hz. In a frequency range of 50–500 Hz, the system exhibits good acoustic response, with an SNR consistently above 40 dB and a relatively flat signal output. This scheme significantly enhances the acoustic response capability of the sensing system, enabling the effective detection of low-frequency acoustic waves. Additionally, it features simple fabrication and low cost, showing great potential for the development of acoustic wave detection applications.

Keywords:

Authors and contacts

Corresponding author: TIAN Jing, jtian1@gzu.edu.cn

Funds: Project supported by the National Natural Science Foundation of China (Grant Nos. 61801134, 61835003), the Special Review and Evaluation Program of Guizhou University, China (Grant No. GDSHPG2023007), and the Curriculum System Reform Project of Guizhou University, China (Grant No. XJG2024045).

FullText HTML

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]

Cited By

DownLoad: Full-Size Img PowerPoint

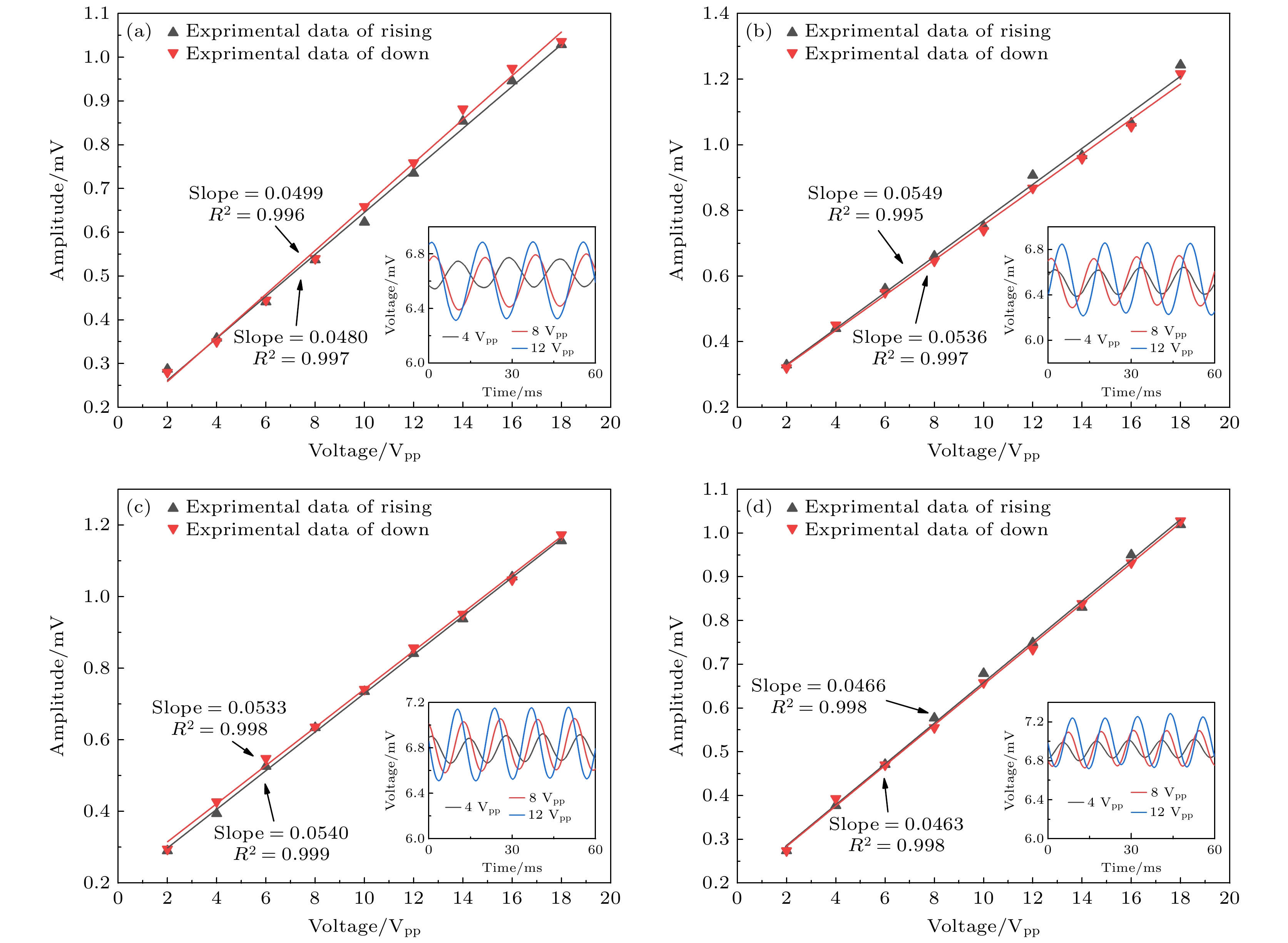

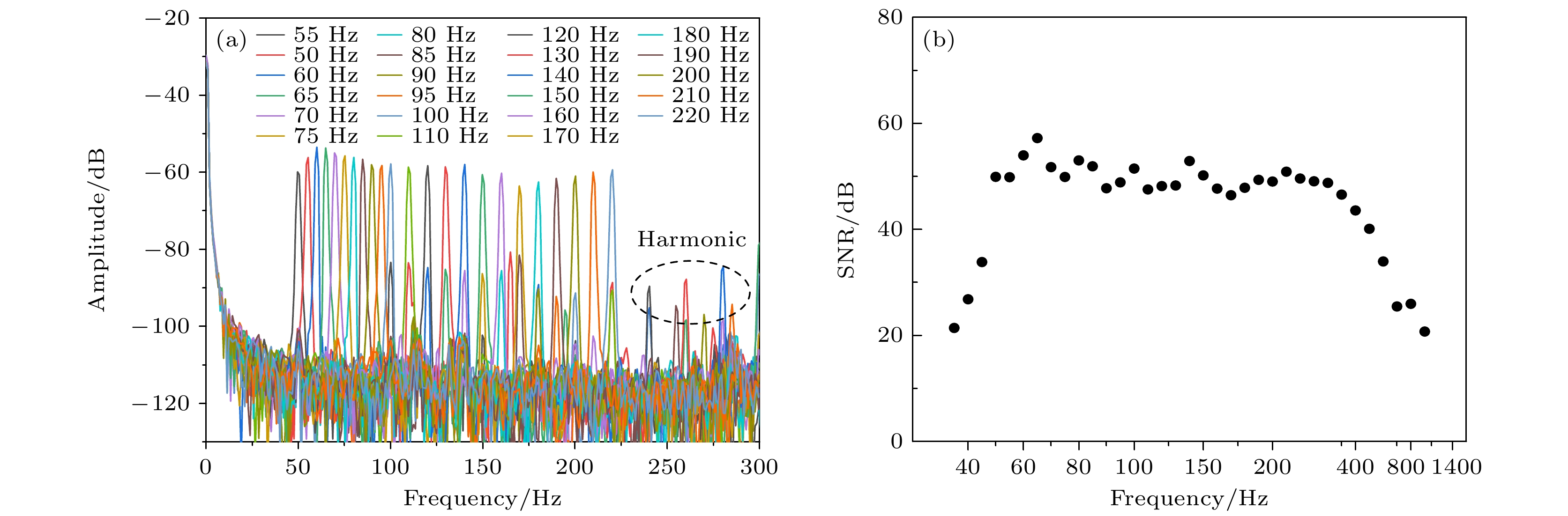

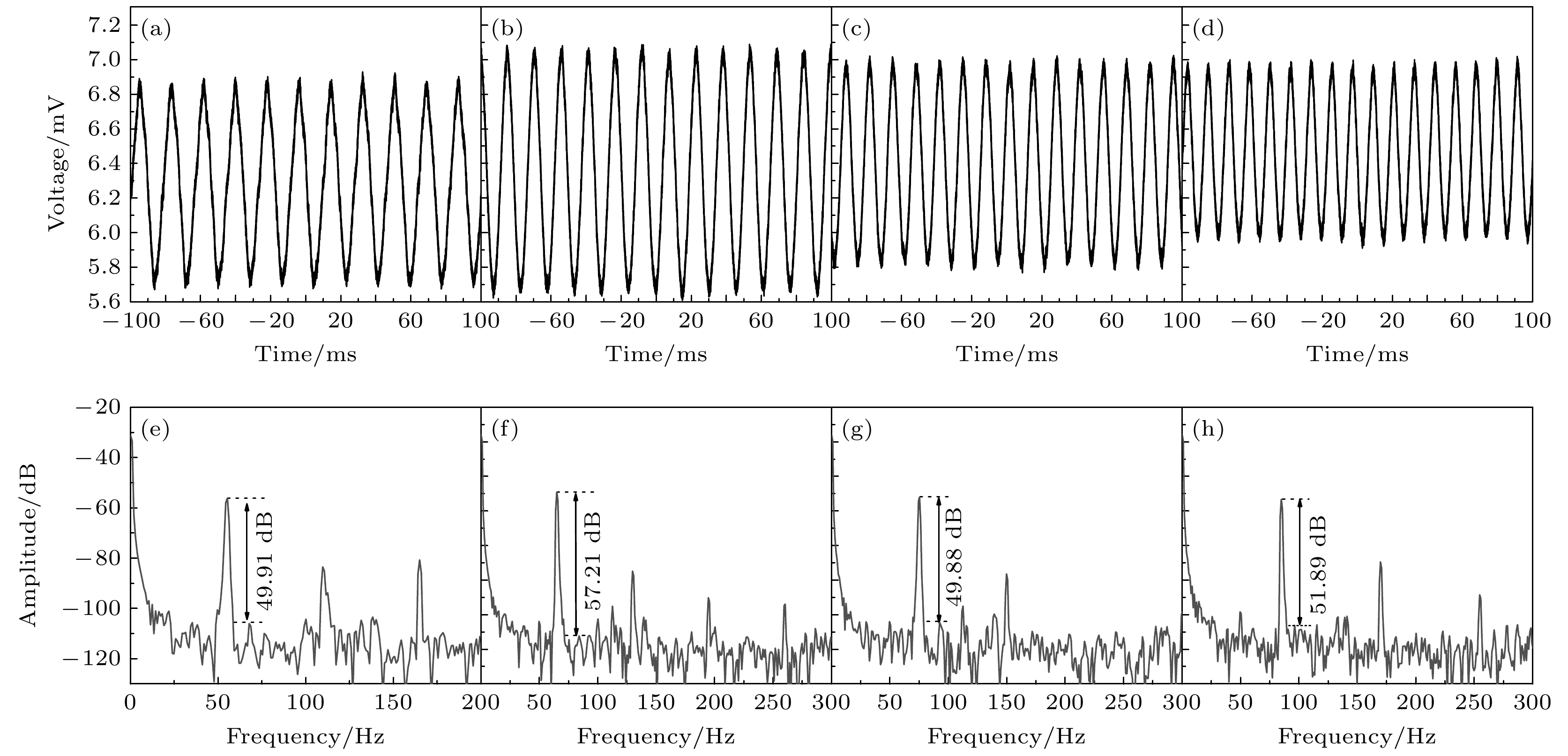

传感结构	声压响应	信噪比/dB	最小探测声压/(${\text{μPa}}\cdot{\text{Hz}}^{-1/2}$)
Tapered fiber^[20]	36 mV/kPa	46.84	21.11×10⁶@2500 Hz
Gold diaphragm-based FPI with a fiber-optic collimator^[21]	12.6 mV/Pa	51	470@150 Hz
FP etalon^[22]	177.6 mV/Pa	12.7	530@1 kHz
LPBG^[15]	0.064 nm/kPa	40.6	331.9@550 Hz
CMOS micromachined capacitive^[23]	—	—	1.35×10⁶@2.4 MHz
Two-photon 3D printed spring-based Fabry-Perot cavity resonator^[24]	0.0883 mV/V_pp	56.2	2390@75 kHz
本工作	0.0549 mV/V_pp	57.21	267.9@65 Hz
