WANG Jianfeng; SHI Luxin; FEI Ting; BAI Yanwen; HU Lina

doi:10.7498/aps.74.20250889

Abstract

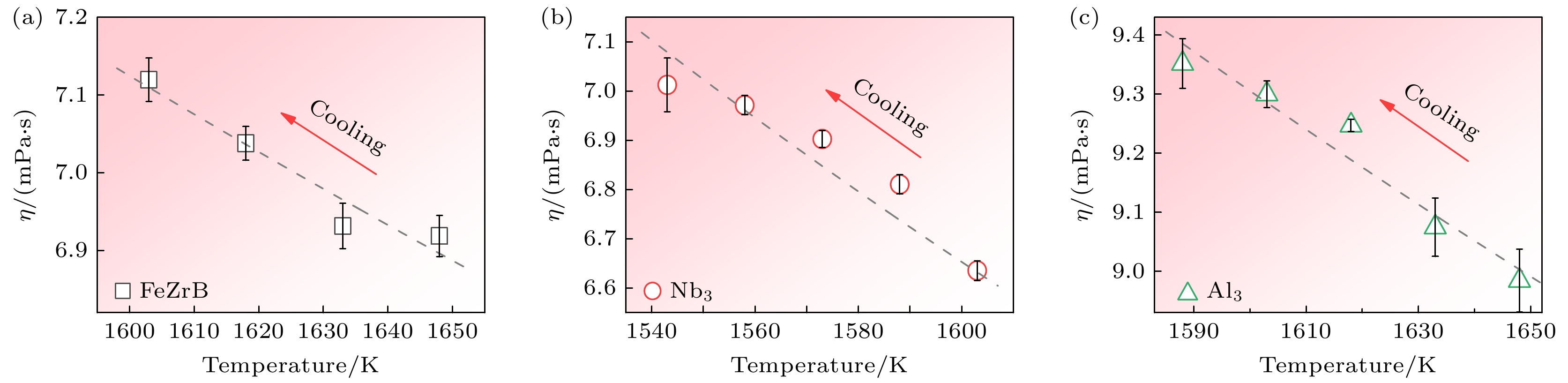

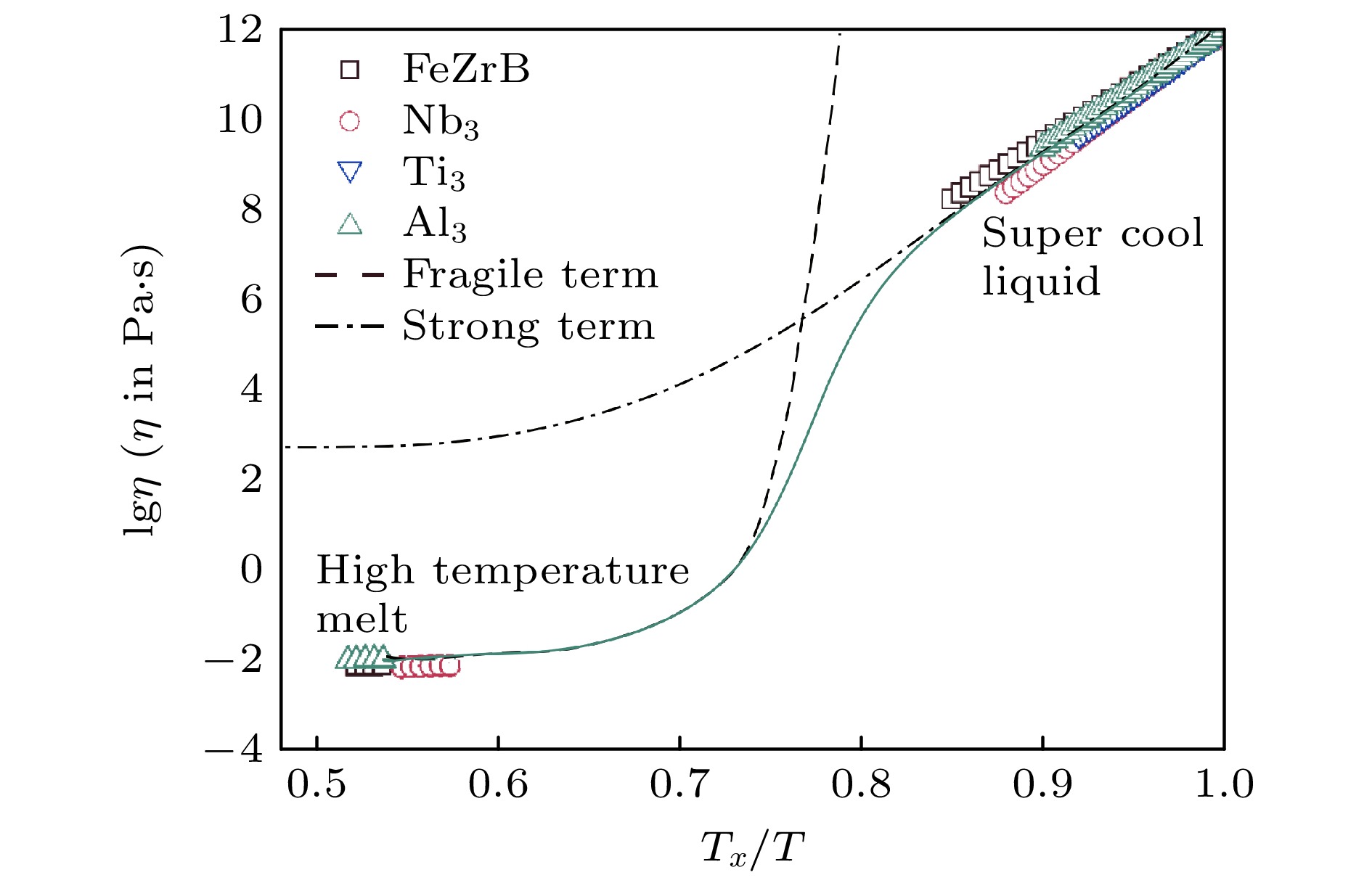

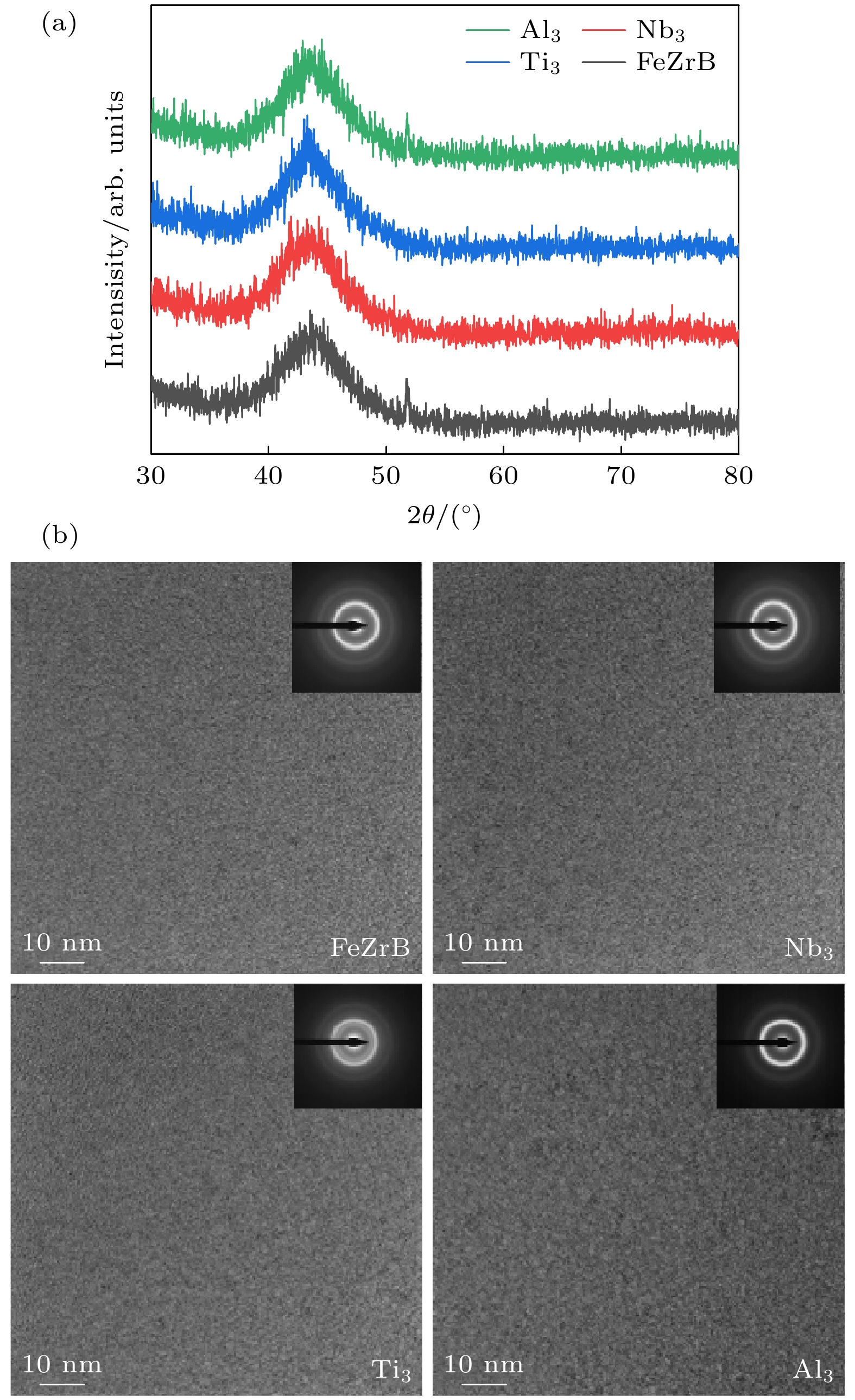

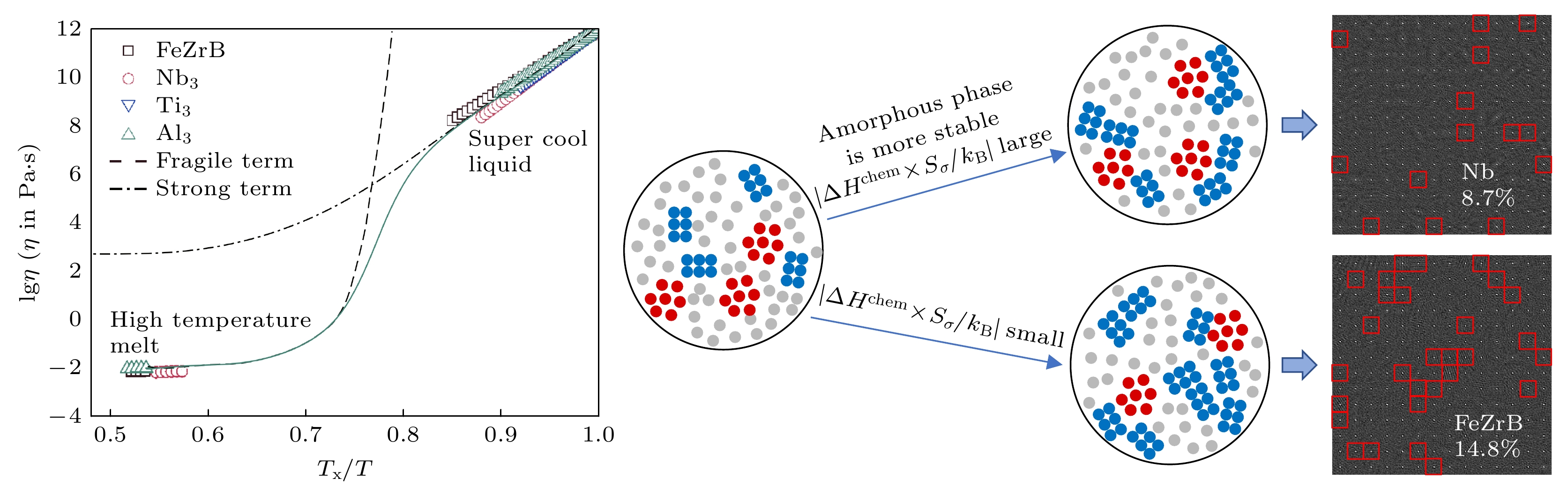

Glass-forming liquids exhibit unique dynamic transition behavior during temperature changes. The system undergoes a transition from the fragile liquid to the strong liquid, which is known as the fragile-to-strong transition as the temperature decreases. In order to address the issue of poor glass-forming ability (GFA) in Fe-based alloys, through studying the kinetic behavior of the Fe-Zr-B-M (M = Nb, Ti, Al) alloy system, the mechanism of ductile-brittle transition is revealed and the relationship between the degree of ductile-brittle transition and the GFA is established. In this study, through viscosity measurements, a pronounced fragile-to-strong transition behavior in this system is revealed. By using crystallization activation energy as an evaluation criterion, a negative correlation between the degree of the fragile-to-strong transition and the GFA in the Fe-Zr-B-M system is established. The results indicate that the crystal-like clusters play a critical role in the solidification process of the Fe-Zr-B-M metallic glasses. Based on this, a fragile-to-strong transition mechanism involving the structural transformation from the icosahedral clusters to the crystal-like clusters is proposed. Through theoretical calculations of mixing enthalpy and mismatch entropy and by combining microstructural characterization, it is found that alloy compositions with more negative mixing enthalpy and higher mismatch entropy can effectively suppress the tendency of icosahedral structures to transform into crystal-like structures, thereby hindering crystallization and promoting the formation of a more disordered amorphous structure. This structural feature not only corresponds to superior glass-forming ability but also exhibits a weak fragile-to-strong transition phenomenon. In this work, the intrinsic correlation between viscosity characteristics and the GFA is revealed, providing a theoretical basis for developing Fe-based metallic glasses with high GFA.

Keywords:

Authors and contacts

Corresponding author: BAI Yanwen, bai_yanwen@163.com ; HU Lina, hulina0614@sdu.edu.cn

Funds: Project supported by the National Key Research and Development Program of China (Grant No. 2022YFB2404102), the General Program of National Natural Science Foundation of China (Grant No. 52471138), and the Key Research and Development Program of Shandong Province (Major Science and Technology Innovation Project of Shandong Province, China (Grant No. 2025CXGC010404).

FullText HTML

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]
[33]
[34]
[35]
[36]
[37]
[38]
[39]
[40]
[41]
[42]
[43]
[44]
[45]
[46]
[47]
[48]
[49]

Cited By

DownLoad: Full-Size Img PowerPoint

成分	高温脆性m'	E/(kJ·mol^–1)	R²	过冷液体脆性系数m
Fe₈₄Zr₉B₇	129.3	413.8	0.976	25.2
(Fe_0.84Zr_0.09B_0.07)₉₇Nb₃	127.6	512.3	0.962	30.3
(Fe_0.84Zr_0.09B_0.07)₉₇Ti₃	—	489.5	0.976	29.1
(Fe_0.84Zr_0.09B_0.07)₉₇Al₃	126.7	436.6	0.90	26.4

DownLoad: CSV

成分	升温速率/ (K·min^–1)	初始晶化温度T_x /K	升温速率/ (K·min^–1)	初始晶化温度T_x/K

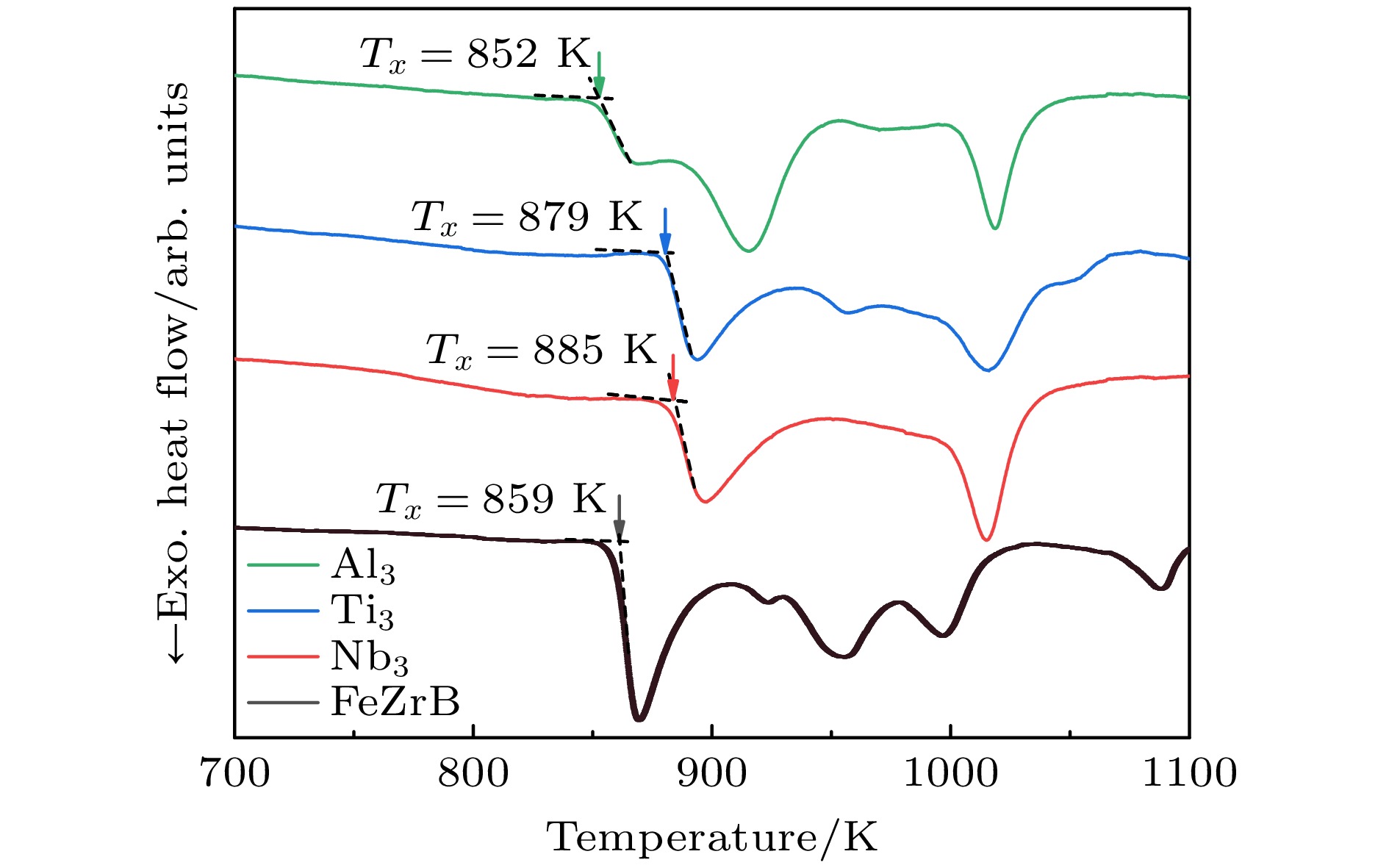

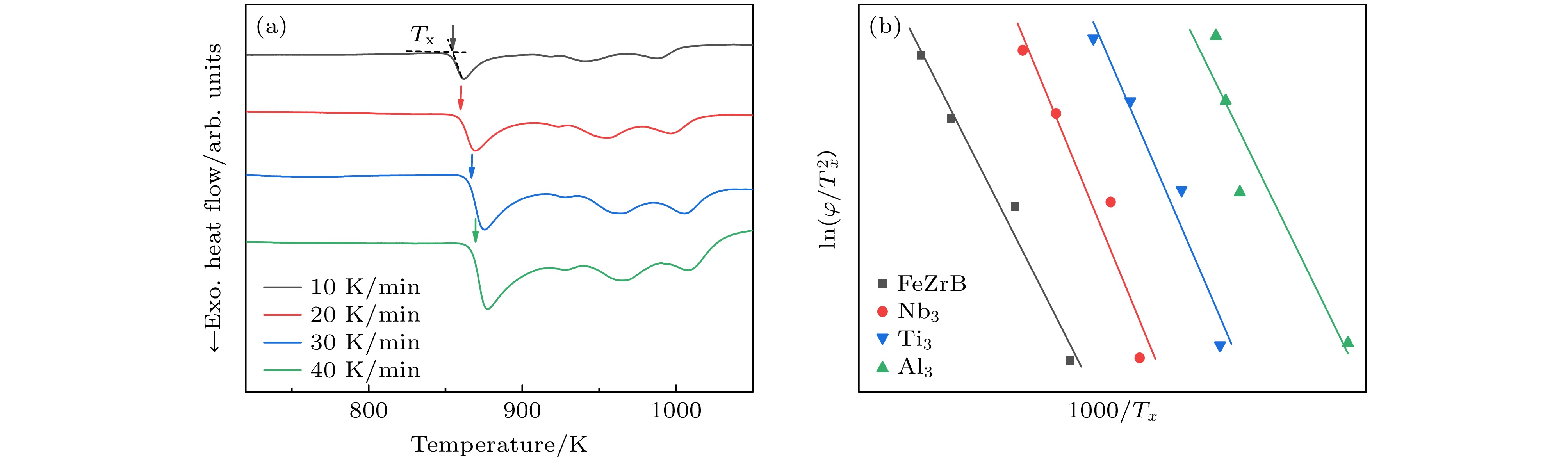

Fe₈₄Zr₉B₇	10	854.5	20	859.3
	30	866.1	40	868.4
(Fe_0.84Zr_0.09B_0.07)₉₇Nb₃	10	879.8	20	885.2
	30	893.1	40	897.1
(Fe_0.84Zr_0.09B_0.07)Ti₉₇₃	10	875.0	20	881.7
	30	886.5	40	889.2
(Fe_0.84Zr_0.09B_0.07)₉₇Al₃	10	840.7	20	846.1
	30	852.3	40	854.3

DownLoad: CSV

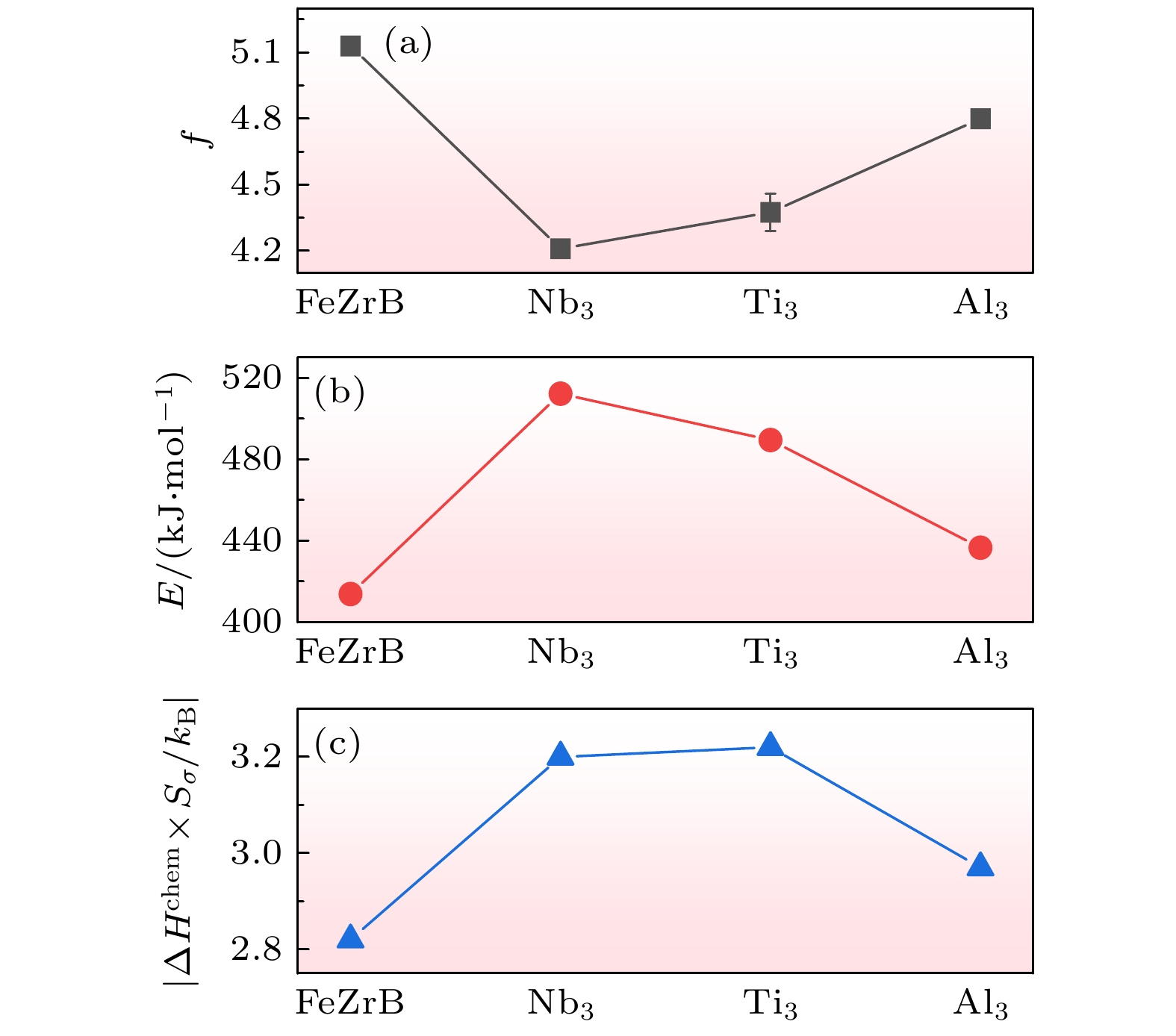

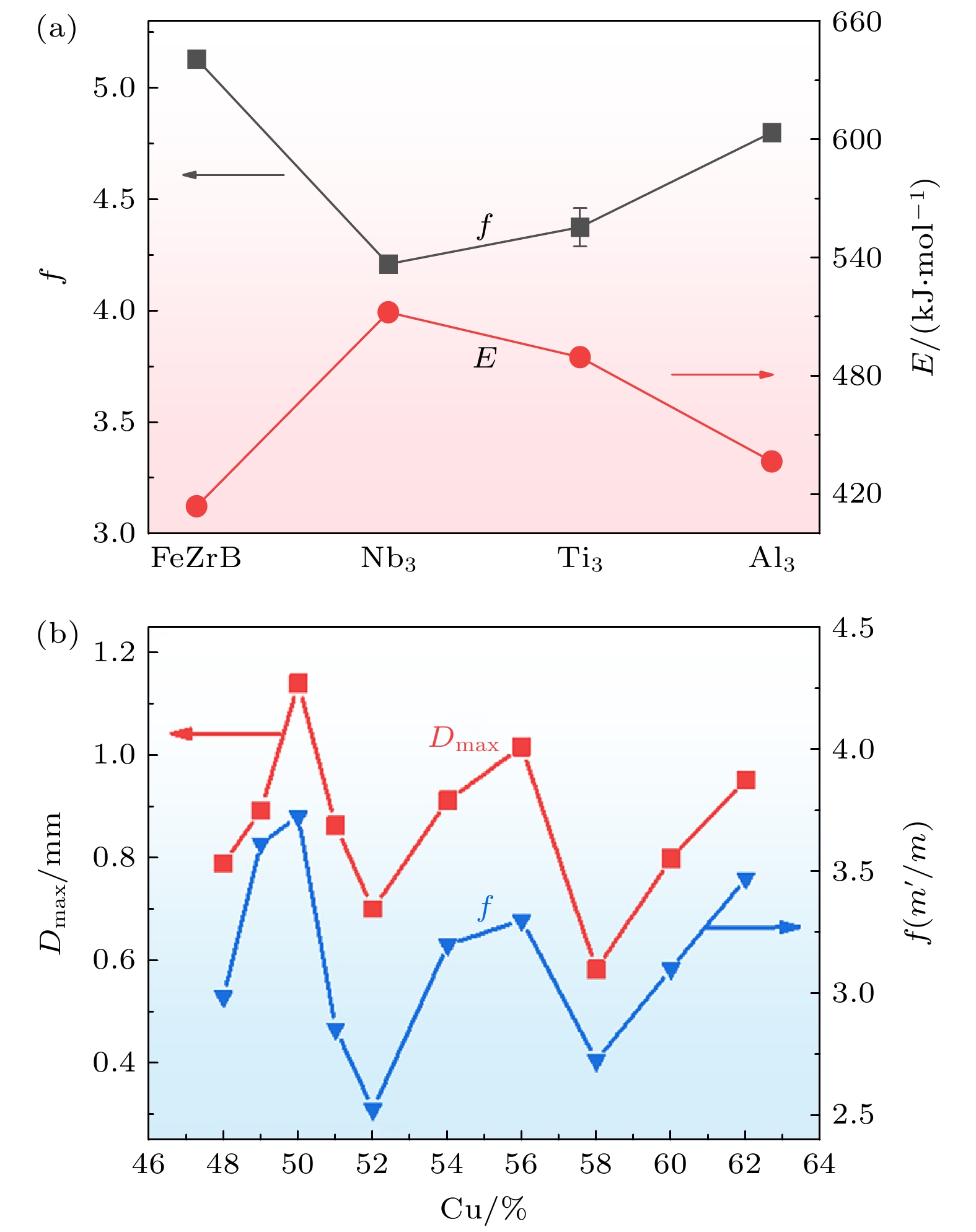

成分	强脆转变系数f	晶化激活能E	混合焓$ {\Delta }{{H}}^{\text{chem}} $/(kJ·mol^–1)	错配熵$ {{S}}_{\sigma}/{{k}}_{\text{B}} $	$ {\|\Delta }{{H}}^{\text{chem}}\times{{S}}_{\sigma}/{{k}}_{\text{B}}\text{\|} $
Fe₈₄Zr₉B₇	5.13	413.8	–12.9	0.219	2.82
(Fe_0.84Zr_0.09B_0.07)₉₇Nb₃	4.21	512.3	–14.1	0.227	3.20
(Fe_0.84Zr_0.09B_0.07)₉₇Ti₃	4.29—4.46	489.5	–14.2	0.227	3.22
(Fe_0.84Zr_0.09B_0.07)₉₇Al₃	4.80	436.6	–13.6	0.219	2.97

DownLoad: CSV

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]
[33]
[34]
[35]
[36]
[37]
[38]
[39]
[40]
[41]
[42]
[43]
[44]
[45]
[46]
[47]
[48]
[49]

[1]	WANG Shoucheng, PAN Qiangqiang, NING Rui, PENG Hailong. Shear banding behavior in soft-hard phase ordered metallic glasses. Acta Physica Sinica, 2025, 74(19): 196101. doi: 10.7498/aps.74.20250845
[2]	Jiang Shuang-Shuang, Zhu Li, Liu Si-Nan, Yang Zhan-Zhan, Lan Si, Wang Yin-Gang. Densification and heterogeneity enhancement of Fe-based metallic glass under local plastic flow. Acta Physica Sinica, 2022, 71(5): 058101. doi: 10.7498/aps.71.20211304
[3]	Shang Ji-Xiang, Zhao Yun-Bo, Hu Li-Na. Abnormal viscosity changes in high-temperature metallic melts. Acta Physica Sinica, 2018, 67(10): 106402. doi: 10.7498/aps.67.20172721
[4]	Yu Hai-Bin, Yang Qun. Ultrastable glasses. Acta Physica Sinica, 2017, 66(17): 176108. doi: 10.7498/aps.66.176108
[5]	Wang Jun-Qiang, Ouyang Su. Extended elastic model for flow of metallic glasses. Acta Physica Sinica, 2017, 66(17): 176102. doi: 10.7498/aps.66.176102
[6]	Ma Jiang, Yang Can, Gong Feng, Wu Xiao-Yu, Liang Xiong. Thermoplastic forming of bulk metallic glasses. Acta Physica Sinica, 2017, 66(17): 176404. doi: 10.7498/aps.66.176404
[7]	Yuan Chen-Chen. Bonding nature and the origin of ductility of metallic glasses. Acta Physica Sinica, 2017, 66(17): 176402. doi: 10.7498/aps.66.176402
[8]	Hu Li-Na, Zhao Xi, Zhang Chun-Zhi. Fragile-to-strong transition in metallic glass-forming liquids. Acta Physica Sinica, 2017, 66(17): 176403. doi: 10.7498/aps.66.176403
[9]	Deng Yong-He, Wen Da-Dong, Peng Chao, Wei Yan-Ding, Zhao Rui, Peng Ping. Heredity of icosahedrons: a kinetic parameter related to glass-forming abilities of rapidly solidified Cu56Zr44 alloys. Acta Physica Sinica, 2016, 65(6): 066401. doi: 10.7498/aps.65.066401
[10]	Cui Xiao, Xu Bao-Chen, Wang Zhi-Zhi, Wang Li-Fang, Zhang Bo, Zu Fang-Qiu. On glass forming ability and thermal stability of Zr57Cu20Al10Ni8Ti5 bulk metallic glass by substituting each component with 1 at% Ag. Acta Physica Sinica, 2013, 62(1): 016101. doi: 10.7498/aps.62.016101
[11]	Yu Yu-Ying, Xi Feng, Dai Cheng-Da, Cai Ling-Cang, Tan Hua, Li Xue-Mei, Hu Chang-Ming. Plastic behavior of Zr51Ti5Ni10Cu25Al9 metallic glass under planar shock loading. Acta Physica Sinica, 2012, 61(19): 196202. doi: 10.7498/aps.61.196202
[12]	Han Guang, Qiang Jian-Bing, Wang Qing, Wang Ying-Min, Xia Jun-Hai, Zhu Chun-Lei, Quan Shi-Guang, Dong Chuang. Electrochemical potential equilibrium of electrons in ideal metallic glasses based on the cluster-resonance model. Acta Physica Sinica, 2012, 61(3): 036402. doi: 10.7498/aps.61.036402
[13]	Chen Yan, Jiang Min-Qiang, Dai Lan-Hong. Temperature-dependent yield asymmetry between tension and compression in metallic glasses. Acta Physica Sinica, 2012, 61(3): 036201. doi: 10.7498/aps.61.036201
[14]	Xu Chun-Long, Hou Zhao-Yang, Liu Rang-Su. Simulation study on thermodynamic, dynamic and structural transition mechanisms during the formation of Ca70Mg30 metallic glass. Acta Physica Sinica, 2012, 61(13): 136401. doi: 10.7498/aps.61.136401
[15]	Guo Gu-Qing, Yang Liang, Zhang Guo-Qing. Atomic structure of Zr48Cu45Al7 bulk metallic glass. Acta Physica Sinica, 2011, 60(1): 016103. doi: 10.7498/aps.60.016103
[16]	Wei Hong-Qing, Li Xiang-An, Long Zhi-Lin, Peng Jian, Zhang Ping, Zhang Zhi-Chun. Correlations between viscosity and glass-forming ability in bulk amorphous alloys. Acta Physica Sinica, 2009, 58(4): 2556-2564. doi: 10.7498/aps.58.2556
[17]	Xia Ming-Xu, Meng Qing-Ge, Zhang Shu-Guang, Ma Chao-Li, Li Jian-Guo. Thermodynamic characteristics of metallic glass-forming liquids. Acta Physica Sinica, 2006, 55(12): 6543-6549. doi: 10.7498/aps.55.6543
[18]	Yu Peng, Bai Hai-Yang, Tang Mei-Bo, Wang Wan-Lu, Wang Wei-Hua. CuZr-based bulk metallic glasses with good glass-forming ability prepared by Al addition. Acta Physica Sinica, 2005, 54(7): 3284-3289. doi: 10.7498/aps.54.3284
[19]	Chen Zhi-Hao, Liu Lan-Jun, Zhang Bo, Xi Yun, Wang Qiang, Zu Fang-Qiu. Glass transition kinetic property of novel bulk Zr-Al-Ni-Cu (Nb,Ti) amorphous alloy. Acta Physica Sinica, 2004, 53(11): 3839-3844. doi: 10.7498/aps.53.3839*
[20]	Tong Cun-Zhu, Zheng Pjing, Bai Hai-Yang, Chen Zhao-Jia, Luo Jian-Lin, Zhang Jie, Lin De-Hua, Wang Wei-Hua. . Acta Physica Sinica, 2002, 51(7): 1559-1563. doi: 10.7498/aps.51.1559

Catalog

Vol. 74, Issue 19 - 2025-10-05

Metrics

Abstract views: 1598
PDF Downloads: 76
Cited By: 0

姓名
邮箱
手机号码
标题
留言内容
验证码

Search

Article

留言板

Abstract

Authors and contacts

Corresponding author: BAI Yanwen, bai_yanwen@163.com ; HU Lina, hulina0614@sdu.edu.cn

FullText HTML

References

Cited By

Catalog

Metrics

Authors

Referees

About Journal

About

Search

Article

留言板

Abstract

Authors and contacts

Corresponding author: BAI Yanwen, bai_yanwen@163.com ; HU Lina, hulina0614@sdu.edu.cn

FullText HTML

References

Cited By

Catalog

Metrics

Publishing process

Authors

Referees

About Journal

About
